一、概述

使用ESP32S3接入百度智能云实现在线语音识别,记录中间遇到的问题和实现流程。

环境

  • 主控:ESP32S3N16R8
  • 平台:Arduino + PlatformIO + VScode

二、步骤

  1. 在百度智能云控制端选择语音识别并创建应用获取API KeySecret Key
  2. 根据创建应用生成的API KeySecret Key来获取access_token
  3. 采集音频数据,打包数据,通过http协议将打包的数据(payload)POST请求发送语音识别的API上
  4. 接收返回的数据(response)

三、实现

1. 创建语音识别应用

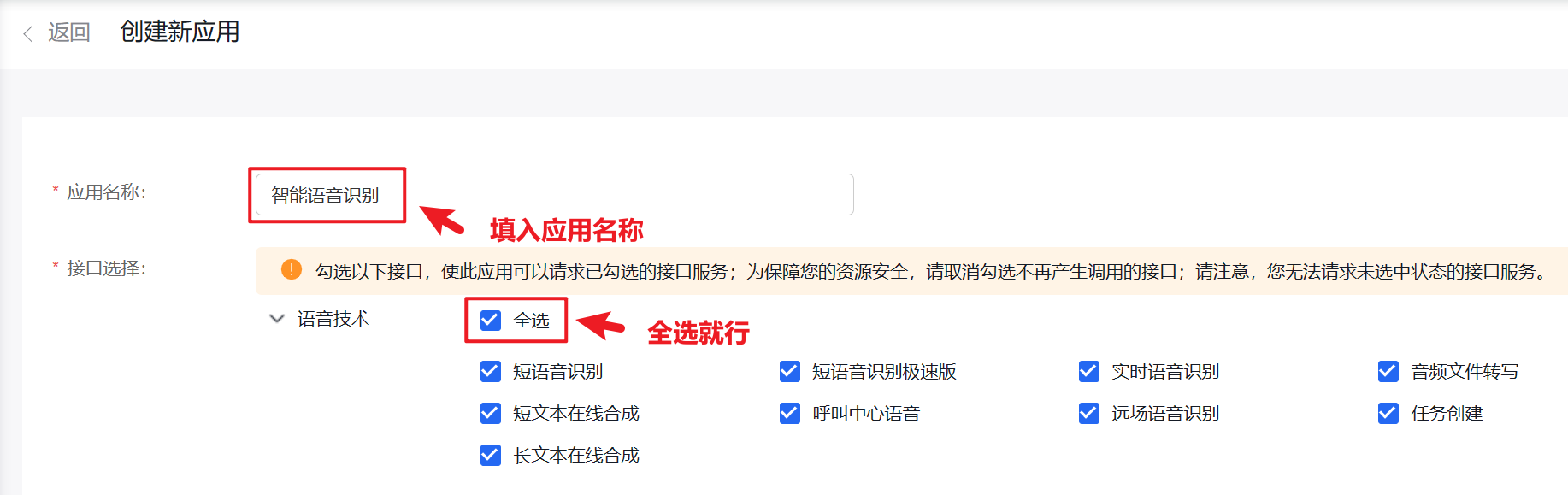

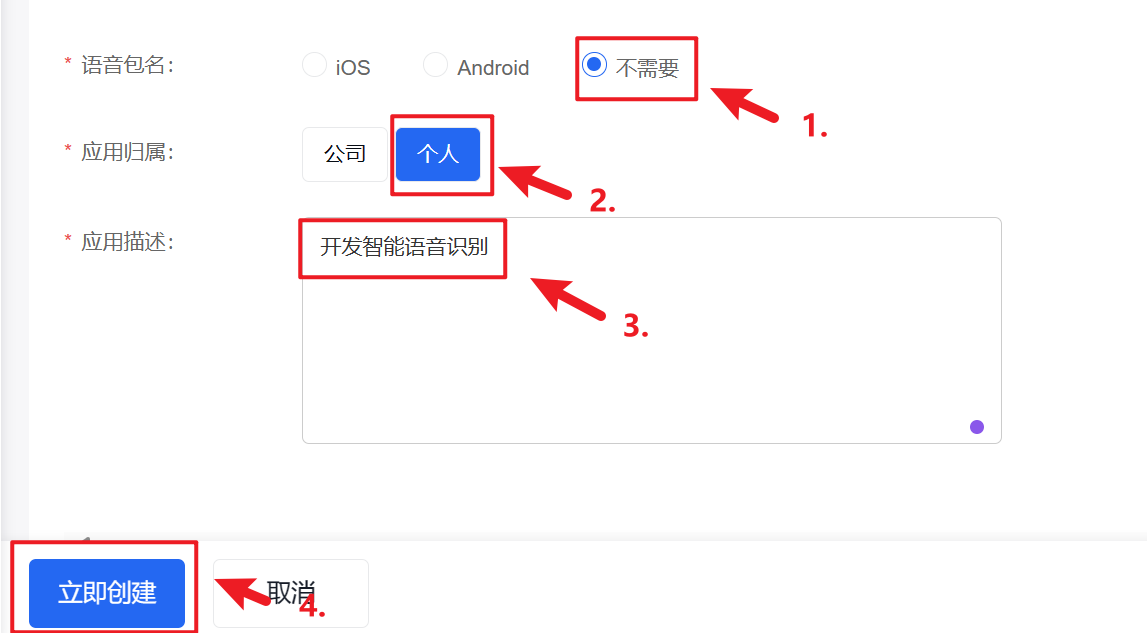

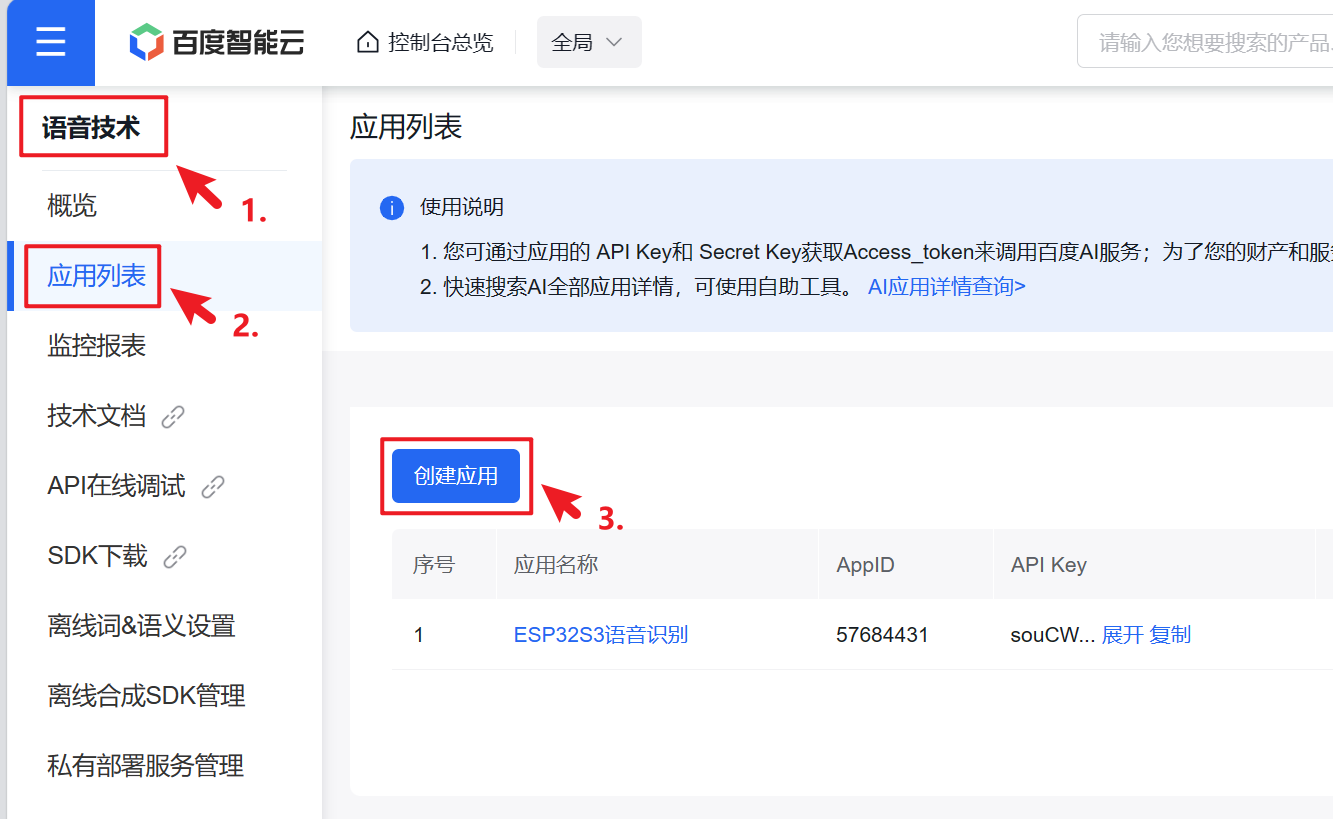

登录百度智能云的云账号,选择语音识别,创建一个新应用。(注意:分清楚百度账号还是云账号,这两个不一样的)
百度智能云:https://login.bce.baidu.com/?redirect=https%3A%2F%2Fconsole.bce.baidu.com%2Fai%2F#/ai/speech/app/list



2. 根据创建应用生成的API Key和Secret Key来获取access_token

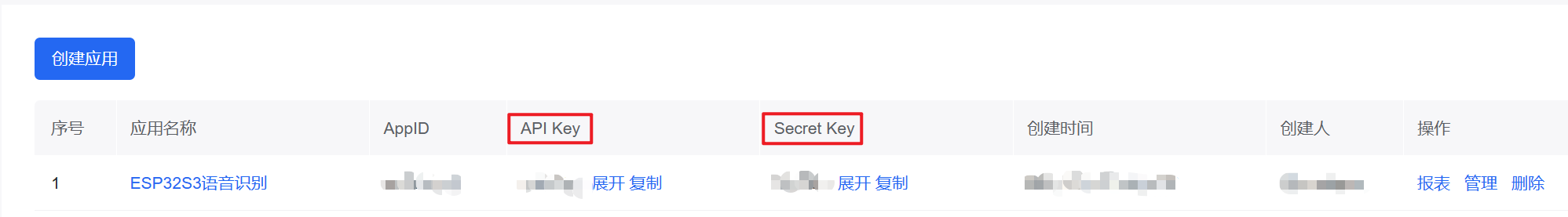

创建好应用,在应用列表里会出现你刚刚创建的应用,当然API KeySecret Key也有啦

有了API KeySecret Key,下面我们可以在ESP32S3上进行GET请求得到access_token的代码!

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/* 获取token */
void gainToken(void)
{
HTTPClient http_client; // #include <HTTPClient.h>
//注意,要把下面网址中的your_apikey和your_secretkey替换成自己的API Key和Secret Key
http_client.begin("https://aip.baidubce.com/oauth/2.0/token?grant_type=client_credentials&client_id=your_apikey&client_secret=your_secretkey");
int httpResponseCode = http_client.GET();

if(httpResponseCode == HTTP_CODE_OK)
{
String response = http_client.getString();
Serial.println(response);
}
else
{
Serial.printf("[HTTP] GET... failed, error: %s\n", http_client.errorToString(httpResponseCode).c_str());
}
http_client.end();
}

请求成功会返回如下数据,我们主要关注access_token

1
2
3
4
5
6
7
8
{
"refresh_token": "25.b55fe1d287227ca97aab219bb249b8ab.315360000.1798284651.282335-8574074",
"expires_in": 2592000,
"scope": "public wise_adapt",
"session_key": "9mzdDZXu3dENdFZQurfg0Vz8slgSgvvOAUebNFzyzcpQ5EnbxbF+hfG9DQkpUVQdh4p6HbQcAiz5RmuBAja1JJGgIdJI",
"access_token": "24.6c5e1ff107f0e8bcef8c46d3424a0e78.2592000.1485516651.282335-8574074",
"session_secret": "dfac94a3489fe9fca7c3221cbf7525ff"
}
  • access_token对应的值就是可用的token,每次申请的token有效期限为30天,过期就需要重新申请。所以咱定时更新access_token就行,不用每次调用语音识别都申请一遍。

3. 采集数据,通过POST请求发送到语音识别API上

数据上传POST的方式有两种:JSON格式和RAW格式。这里我们使用JSON格式,下图为JSON格式上传的一些必要的参数说明:

字段名 类型 可需 描述
format String 必填 语音文件的格式,pcm/wav/amr/m4a。不区分大小写。推荐pcm文件!
rate int 必填 采样率,16000、8000,固定值
channel int 必填 声道数,仅支持单声道,请填固定值1
cuid String 必填 用户唯一标识,用来区分用户,计算UV值。建议填写能区分用户的机器MAC地址或IMEI码,长度为60字符以内。
token String 必填 开放平台获取到的开发者[access_token]
dev_pid int 选填 不填写lan参数生效,都不填写就默认1537(普通话,输入法模型)
lm_id int 选填 自训练平台模型id,填dev_id = 8001 或 8002 生效
lan String 选填,废弃参数 历史兼容参数,已不再使用
speech String 必填 本地语音文件的二进制语音数据,需要进行 base64 编码,与len参数一起使用
len int 必填 本地语音文件的字节数,单位是字节(byte)

图中对数据类型和内容说的很明确了,只需要按照这个格式打包好数据然后发送就行,下面是ESP32S3的具体实现代码。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
char payload[160000];

/* 在线语音识别 */
String speechRecognition(void)
{
HTTPClient http_client; // #include <HTTPClient.h>

_LOG("[Recognition] Start recognition!\r\n");

result = Mic.record(_rawData, _samples); // 录制声音
_LOG("[Mic] record:%s\r\n", (result == true ? "true" : "false"));
while (Mic.isRecording()); // 当录制完成时
_LOG("[Mic] record is done!\r\n");

memset(payload, '\0', strlen(payload)); // 将数组清空
strcat(payload, "{");
strcat(payload, "\"format\":\"pcm\",");
strcat(payload, "\"rate\":16000,"); // 采样率,如果采样率改变了,记得修改该值,只有16000、8000两个固定采样率
strcat(payload, "\"dev_pid\":1537,"); // 中文普通话
strcat(payload, "\"channel\":1,"); // 单声道
strcat(payload, "\"cuid\":\"hugozkl\","); // 识别码,随便打几个字符,但最好唯一
strcat(payload, "\"token\":\"24.ba06cf95edb0b0aee7bfb016209e5948.2592000.1713715897.282335-57684431\","); // token,这里需要修改成自己申请到的token
strcat(payload, "\"len\":65536,"); // 数据长度,如果传输的数据长度改变了,记得修改该值,该值是ADC采集的数据字节数,不是base64编码后的长度
strcat(payload, "\"speech\":\"");
strcat(payload, base64::encode((uint8_t *)_rawData, 65536).c_str()); // base64编码数据 // #include "base64.h"
strcat(payload, "\"");
strcat(payload, "}");

// HTTP POST
int httpResponseCode;
http_client.begin("http://vop.baidu.com/server_api");
http_client.addHeader("Content-Type", "application/json");
http_client.setTimeout(5000); // 5s超时时间
httpResponseCode = http_client.POST(payload);

if (httpResponseCode == HTTP_CODE_OK)
{
String response = http_client.getString();

http_client.end();
_LOG("\r\n%s\r\n", response.c_str());

// Parse JSON response
DynamicJsonDocument doc(2048); // #include <ArduinoJson.h>
deserializeJson(doc, response);

String outPutText = doc["result"];
// 去掉首尾的[""]
outPutText = outPutText.substring(2);
outPutText = outPutText.substring(0, outPutText.length() - 2);
return outPutText;
}
else
{
_LOG("[HTTP] GET... failed, error: %s\n", http_client.errorToString(httpResponseCode).c_str());
http_client.end();
return "<error>";
}
}

POST发送数据有一个固定头部:Content-Type:application/json,POST前需要设置一下,代码中已经有展示。

4. 接收数据

在上一步代码中实现了接收数据,这里列一下返回的数据:

1
2
3
4
5
{"corpus_no":"7349831540333925029","err_msg":"success.","err_no":0,"result":["你好,你是谁?"],"sn":"593363272001711266008"}

{"corpus_no":"7349831596084473860","err_msg":"success.","err_no":0,"result":["现在多少点?"],"sn":"671001951581711266021"}

{"corpus_no":"7349831639168589351","err_msg":"success.","err_no":0,"result":["深圳天气如何?"],"sn":"13152229661711266031"}
  • 数据发送成功则会返回正确的识别数据,当然声音信号不好时返回的语音识别也会不准确。
  • 谨记,返回的语音识别结果是UTF-8方式编码,所以代码的编码最好也改为UTF-8编码格式。

四、总结

  • 百度智能云的语音识别服务是可以免费领取到一定使用次数的,15万次,足够我们测试使用,记得开始测试前先领取一下,不然会出现返回报错:{'err_msg': 'request pv too much', 'err_no': 3305, 'sn': '876137091191590632079' },报错原因多半是免费次数没领取或者用完了要开通付费功能。

鸣谢

项目教程:https://blog.csdn.net/wojueburenshu/article/details/119244390
