关于Hexo's Fluid主题拓展的N种配置👾

关于Hexo’s Fluid主题拓展的N种配置👾

make your Hexo’s theme more graceful!!!

Author:@kkl


给Fluid主题添加MAC风格代码块

完整路径: blog_root_path/themes/fluid/source/css

  • 首先,到hexo-theme-fluid主题根目录下source/css创建名为macpanel.styl的文件并往该文件当中写入以下内容:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
.highlight
background: #21252b
border-radius: 10px
box-shadow: 0 0px 20px 0 rgba(0, 0, 0, .4)
padding-top: 30px

&::before
background: #fc625d
border-radius: 50%
box-shadow: 20px 0 #fdbc40, 40px 0 #35cd4b
content: ' '
height: 12px
left: 12px
margin-top: -20px
position: absolute
width: 12px
  • 到管理主题的_config.fluid.yml配置文件当中添加新建的macpanel.styl文件,如下:
1
2
custom_css:
- /css/macpanel
  • 随后,重新hexo g后就可以看到效果啦。不过可能会出现MAC栏是黑色的,但是代码块背景是白色的情况(因为代码块风格默认为白色。此时如果你不满意,可以继续在_config.fluid.yml配置文件当中修改代码块风格,操作如下:
1
2
3
4
5
6
highlightjs:

# style: "github gist"

style: "github dark dimmed"
style_dark: "dark"

其实呢,建议不需要修改这个默认的代码块背景颜色的风格,因为你选择使用夜间模式,画面就可以对的上了哈哈哈哈哈!

给Fluid主题添加首页图片缩放动画

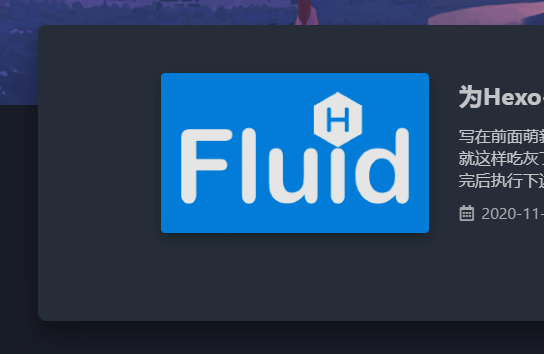

首页图片缩放动画

完整路径:blog_root_path/themes/fluid/source/css

  • blog_root_path/themes/fluid/source/css中新建indeximg-hover.css,并往该文件内写入以下内容:
1
2
3
4
5
6
7
8
.index-img {
/* 动画时间 */
transition: .4s;
}
.index-card:hover .index-img {
/* 放大倍数 */
transform: scale(1.05);
}
  • 在Fluid主题配置文件_config.fluid.yml中添加自定义CSS,操作如下:
1
2
custom_css:
- /css/indeximg-hover.css

给Fluid主题添加热力图

这里非常感谢博主邓布利多的冥想盆分享的实现方法👏👏👏!!!

实现过程

  1. heatmap.js放入fluid/scripts/helpers/文件夹下。

  2. Markdown当中添加以下两行代码即可进行调用:

1
2
<script src="https://cdn.jsdelivr.net/npm/echarts@5.5.0/dist/echarts.min.js"></script>
<div id="posts-chart"style="border-radius: 8px; height: 190px; padding: 10px;"></div>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
const cheerio = require('cheerio')
const moment = require('moment')
const { stripHTML } = require('hexo-util');

hexo.extend.filter.register('after_render:html', function (locals) {
const $ = cheerio.load(locals)
const post = $('#posts-chart')
const htmlEncode = false

if (post.length > 0) {
if (post.length > 0 && $('#postsChart').length === 0) {
if (post.attr('data-encode') === 'true') htmlEncode = true
post.after(postsChart())
}

if (htmlEncode) {
return $.root().html().replace(/&amp;#/g, '&#')
} else {
return $.root().html()
}
} else {
return locals
}
}, 15)

function getWordCount(contentString){
// post.origin is the original post content of hexo-blog-encrypt
const content = stripHTML(String(contentString)).replace(/\r?\n|\r/g, '').replace(/\s+/g, '');
const zhCount = (content.match(/[\u4E00-\u9FA5]/g) || []).length;
const enCount = (content.replace(/[\u4E00-\u9FA5]/g, '').match(/[a-zA-Z0-9_\u0392-\u03c9\u0400-\u04FF]+|[\u4E00-\u9FFF\u3400-\u4dbf\uf900-\ufaff\u3040-\u309f\uac00-\ud7af\u0400-\u04FF]+|[\u00E4\u00C4\u00E5\u00C5\u00F6\u00D6]+|\w+/g) || []).length;
var wordcount = zhCount + enCount
return wordcount;
};

function postsChart () {
const postArr = [];
const dataArr = [];
hexo.locals.get('posts').map(function (post) {
postArr.push({ title: post.title,
date: post.date.format('YYYY-MM-DD'),
wordcount: (getWordCount(post.content)/1000).toFixed(2),
path: post.path })
dataArr.push([post.date.format('YYYY-MM-DD'), getWordCount(post.content)/1000])
})

var dataCalendar = JSON.stringify(dataArr)
var dataPosts = JSON.stringify(postArr)

return `
<script id="postsChart" type="text/javascript">
var postsChart = echarts.init(document.getElementById('posts-chart'), document.documentElement.getAttribute('data-user-color-scheme'));
window.onresize = function() {
postsChart.resize();
};
let dataPosts = ${dataPosts}
const dataMap = new Map(dataPosts.map((obj) => [obj.date, {title: obj.title, wordCount: obj.wordcount, path: obj.path}]));

function heatmap_width(months){
var startDate = new Date();
var mill = startDate.setMonth((startDate.getMonth() - months));
var endDate = +new Date();
startDate = +new Date(mill);
endDate = echarts.format.formatTime('yyyy-MM-dd', endDate);
startDate = echarts.format.formatTime('yyyy-MM-dd', startDate);
var showmonth = [];
showmonth.push([
startDate,
endDate
]);
return showmonth
};

function getRangeArr() {
const windowWidth = window.innerWidth;
if (windowWidth >= 600) {
return heatmap_width(12);
}
else if (windowWidth >= 400) {
return heatmap_width(9);
}
else {
return heatmap_width(6);
}
}

var postsOption = {
title: {
top: 0,
left: 'center',
text: '博客热力图'
},
tooltip: {
formatter: function (p) {
const post = dataMap.get(p.data[0]);
return post.title + ' | ' + post.wordCount + ' 千字';
}
},
visualMap: {
min: 0,
max: 10,
type: 'piecewise',
orient: 'horizontal',
left: 'center',
top: 30,
inRange: {
// [floor color, ceiling color]
color: ['#cde1ae', '#778f3d' ]
},
splitNumber: 4,
text: ['千字', ''],
showLabel: true,
itemGap: 20,
},
calendar: {
top: 80,
left: 20,
right: 4,
cellSize: ['auto', 12],
range: getRangeArr(),
itemStyle: {
color: '#F1F1F1',
borderWidth: 2.5,
borderColor: '#fff',
},
yearLabel: { show: false },
// the splitline between months
splitLine: {
lineStyle: {
color: "#000",
width: 1,
type: "solid",
}
}
},
series: {
type: 'heatmap',
coordinateSystem: 'calendar',
data: ${dataCalendar}
}
};

postsChart.setOption(postsOption);
window.addEventListener('resize', () => {
postsChart.resize();
});
postsChart.on('click', function(params) {
const post = dataMap.get(params.data[0]);
const link = window.location.origin + "/" + post.path;
window.open(link, '_blank').focus();
});
document.body.addEventListener('click', function(e) {
if (document.documentElement.getAttribute('data-user-color-scheme')==='dark') {
postsChart.dispose();
postsChart = echarts.init(document.getElementById('posts-chart'), 'dark');
postsChart.setOption(postsOption);
postsChart.on('click', function(params) {
const post = dataMap.get(params.data[0]);
const link = window.location.origin + "/" + post.path;
window.open(link, '_blank').focus();
});
} else {
postsChart.dispose();
postsChart = echarts.init(document.getElementById('posts-chart'), 'light');
postsChart.setOption(postsOption);
postsChart.on('click', function(params) {
const post = dataMap.get(params.data[0]);
const link = window.location.origin + "/" + post.path;
window.open(link, '_blank').focus();
});
}
});
</script>`
}

热力图效果展示如下:

在实践博主分享的方法时,遇到了以下问题:未找到cheerio,解决方法:npm install cheerio.

自定义页脚效果图如下:
自定义页脚效果图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<div class="text-center py-1">
<div class="img-circle rotate">
<img src="https://hugokkl.oss-cn-shenzhen.aliyuncs.com/blog/sys/myimg.png" alt="Image">
</div>
<br>
<span># Carpe diem </span>
<p></p>
</div>

<span>Framework</span>
<a href="https://hexo.io" target="_blank" rel="nofollow noopener">
<span>Hexo</span>
</a>
<i class="iconfont icon-switch-fill"></i>
<a href="https://github.com/fluid-dev/hexo-theme-fluid" target="_blank" rel="nofollow noopener">
<span>fluid</span>
</a>

<div>
<span>Copyright © 2023-2024</span>
<a href="https://zhangkeliang0627.github.io/" target="_blank" rel="nofollow noopener">
<span>Hugo@kkl</span>
</a>
</div>

<style>
.img-circle {
display: block;
margin: 0 auto;
border-radius: 50%;
overflow: hidden;
width: 150px;
height: 150px;
}

.img-circle img {
display: block;
max-width: 100%;
height: auto;
}

.text-center {
text-align: center;
}

.py-1 {
padding-top: 1rem;
padding-bottom: 1rem;
}

.rotate {
transition: transform 0.8s;
}

.rotate:hover {
transform: rotate(360deg);
}

div {
line-height: 1.5;
}
</style>

给Fluid主题添加 tabs 分栏容器

Install

1
npm install hexo-tag-common

Usage

Reference: plugins-tabs | next

This is Tab 1.

This is Tab 2.

This is Tab 3.

但是反过来组合却不行,略sad😥

This is Tab 1.

This is Tab 2.

This is Tab 3.

给Fluid主题添加音乐卡片

功能来自:https://github.com/metowolf/MetingJS

你只需要在你的markdown页面加入以下HTML代码即可添加音乐卡片,支持网易云音乐、QQ音乐等(当然有外链的都可以,更多功能戳上面的链接去看吧!


1
2
3
4
5
6
7
8
9
10
11
<!-- require APlayer -->
<link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/aplayer/dist/APlayer.min.css">
<script src="https://cdn.jsdelivr.net/npm/aplayer/dist/APlayer.min.js"></script>
<!-- require MetingJS -->
<script src="https://cdn.jsdelivr.net/npm/meting@2/dist/Meting.min.js"></script>

<meting-js
server="netease"
type="playlist"
id="60198">
</meting-js>


1
2
3
4
5
6
7
8
9
10
11
<!-- require APlayer -->
<link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/aplayer/dist/APlayer.min.css">
<script src="https://cdn.jsdelivr.net/npm/aplayer/dist/APlayer.min.js"></script>
<!-- require MetingJS -->
<script src="https://cdn.jsdelivr.net/npm/meting@2/dist/Meting.min.js"></script>

<meting-js
server="netease"
type="song"
id="1806075545">
</meting-js>

一些我常用到的Fluid特性(记性不好,这里再记一记📖✏️

折叠块

好吧,既然你看到这里,我祝你今天愉快🤗

使用折叠块,可以折叠代码、图片、文字等任何内容,你可以在 markdown 中按如下格式:

1
2
3
4
5
6
7
8
9
{% fold info @title %}
需要折叠的一段内容,支持 markdown
{% endfold %}

example:

{% fold info @你确定要打开看看么? %}
好吧,既然你看到这里,我祝你今天愉快🤗
{% endfold %}

组图

如果想把多张图片按一定布局组合显示,你可以在 markdown 中按如下格式:

1
2
3
4
5
6
7
{% gi total n1-n2-... %}
![](url)
![](url)
![](url)
![](url)
![](url)
{% endgi %}

total:图片总数量,对应中间包含的图片 url 数量
n1-n2-…:每行的图片数量,可以省略,默认单行最多 3 张图,求和必须相等于 total,否则按默认样式

便签

在 markdown 中加入如下的代码来使用便签:

1
2
3
{% note success %}
文字 或者 `markdown` 均可
{% endnote %}

或者使用 HTML 形式:

1
<p class="note note-primary">标签</p>

可选便签:

primary

secondary

success

danger

warning

info

light

行内标签

在markdown中加入如下代码来使用Label:

1
{% label primary @text %}

或者使用HTML形式:

1
<span class="label label-primary">Label</span>

以下是可选Label:

primary default info success warning danger

图片脚注

终于找到可以在markdown里写html注入图片可以添加脚注的方法啦,因为markdown注入图片的写法有时候不能改变图片的大小比例,这就非常令人抓狂。

1
2
3
4
<figure>
<img src=[img_source] width="50%"/>
<figcaption>[Your awesome caption]</figcaption>
</figure>

后记

  • 如果某些配置没有成功,可以尝试先hexo clean,再hexo g && hexo d,因为我有遇到过修改nav-bg-color失败的经历,就是没有hexo clean,捣鼓了半天…

  • 前端麻瓜也能有出头的一天😁!


关于Hexo's Fluid主题拓展的N种配置👾
https://zhangkeliang0627.github.io/2024/07/31/关于Fluid主题拓展的N种配置/README/
Author
Zhang-keliang
Posted on
July 31, 2024
Licensed under
